BLACK UNICORN CRANE

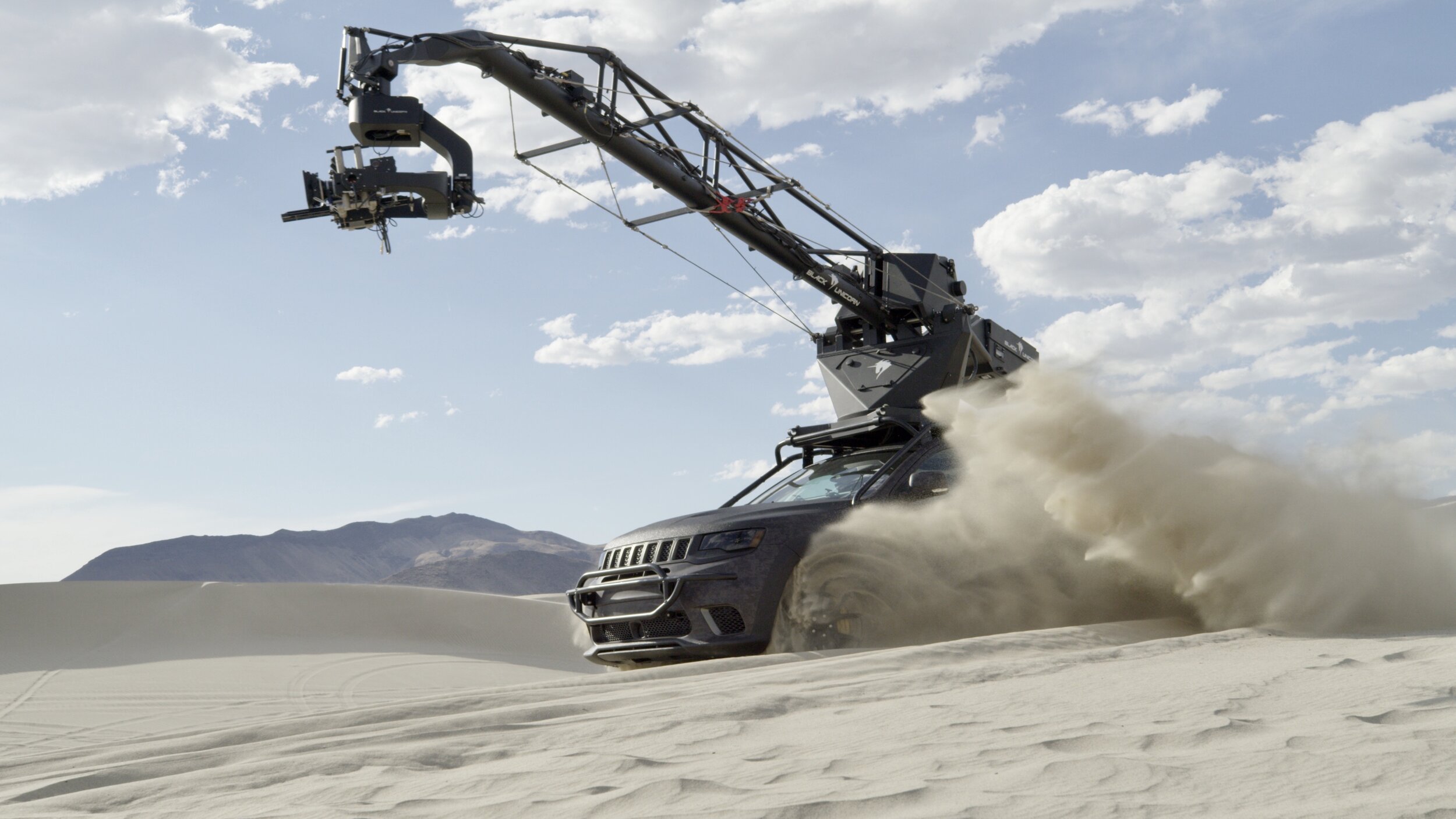

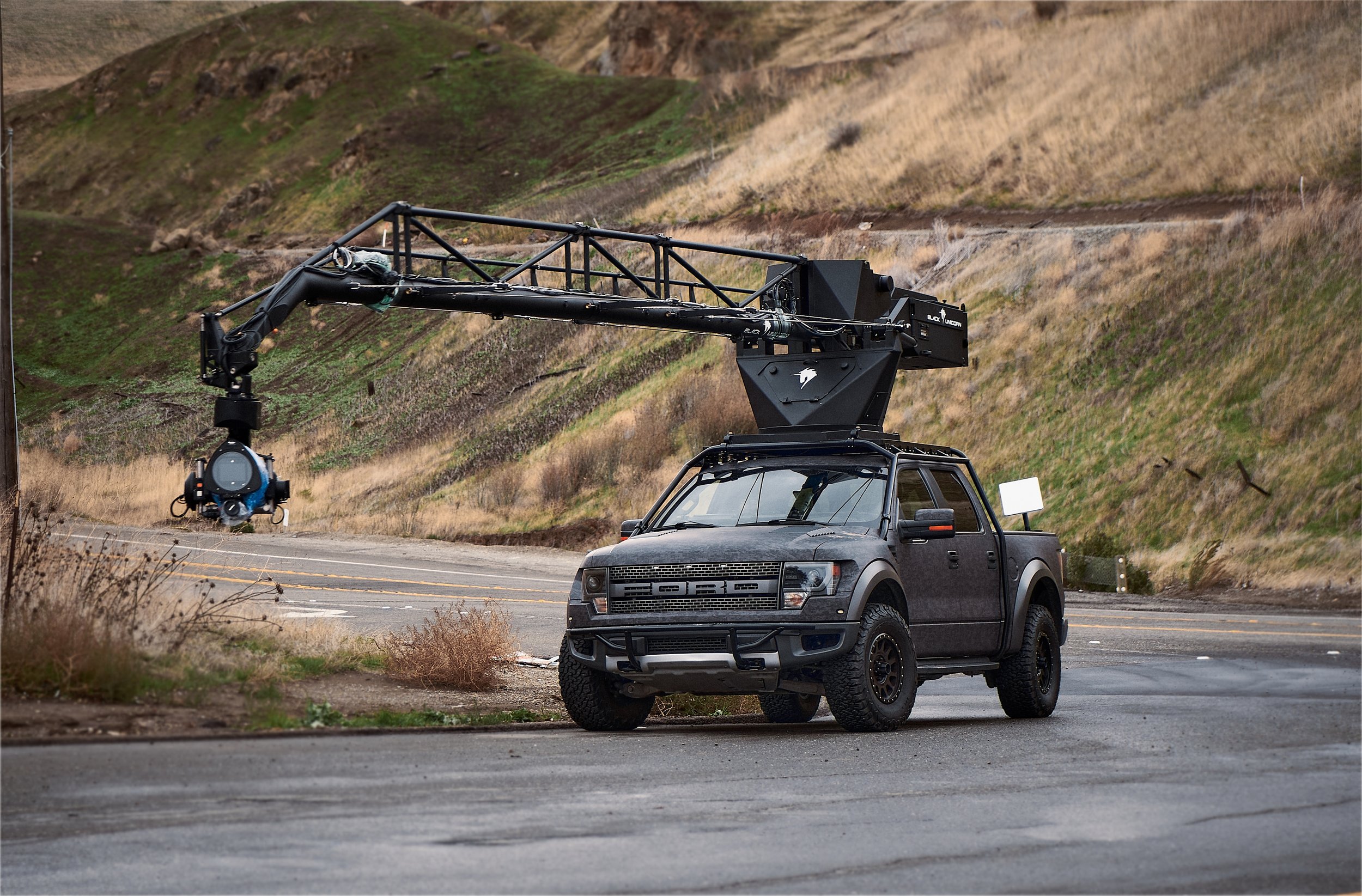

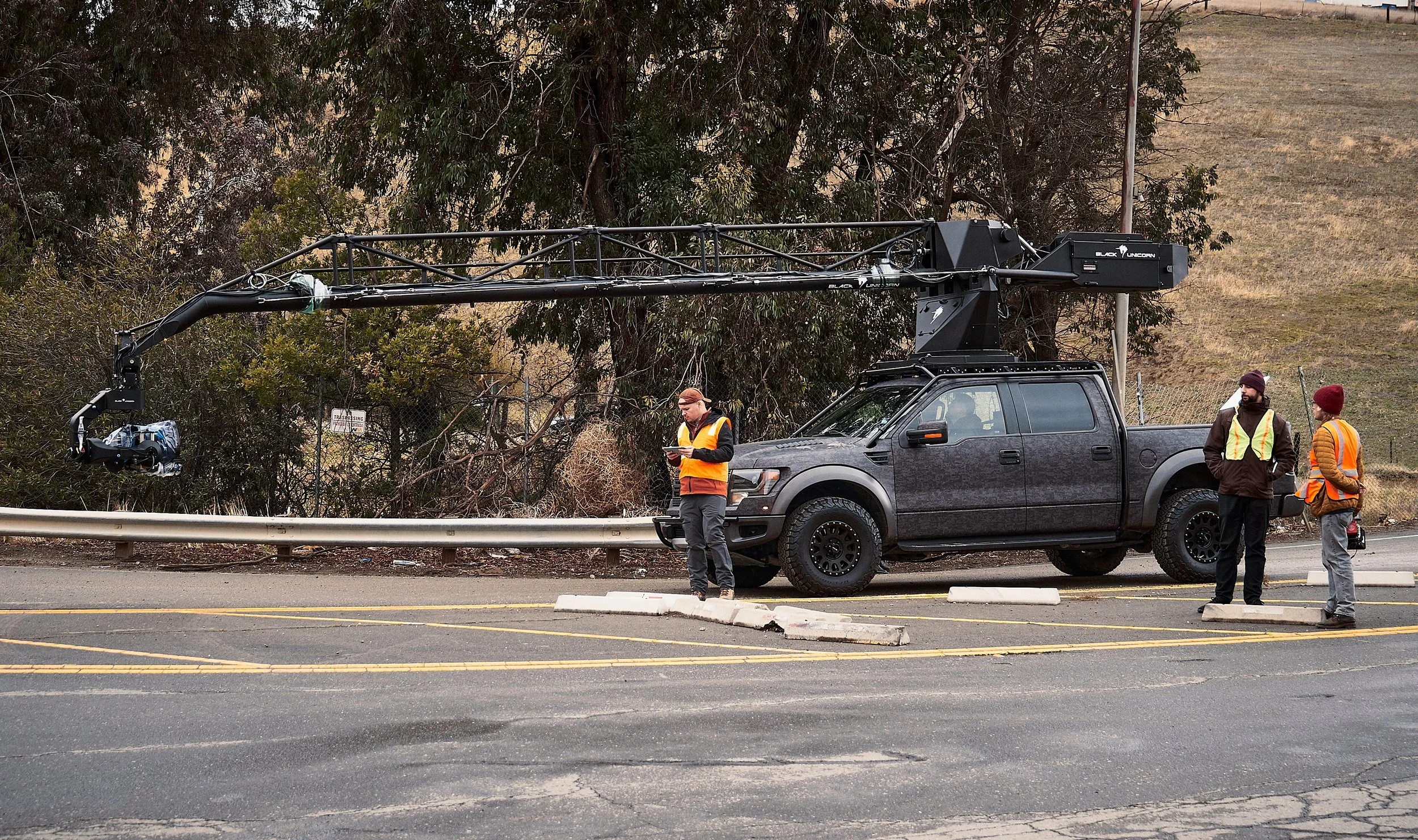

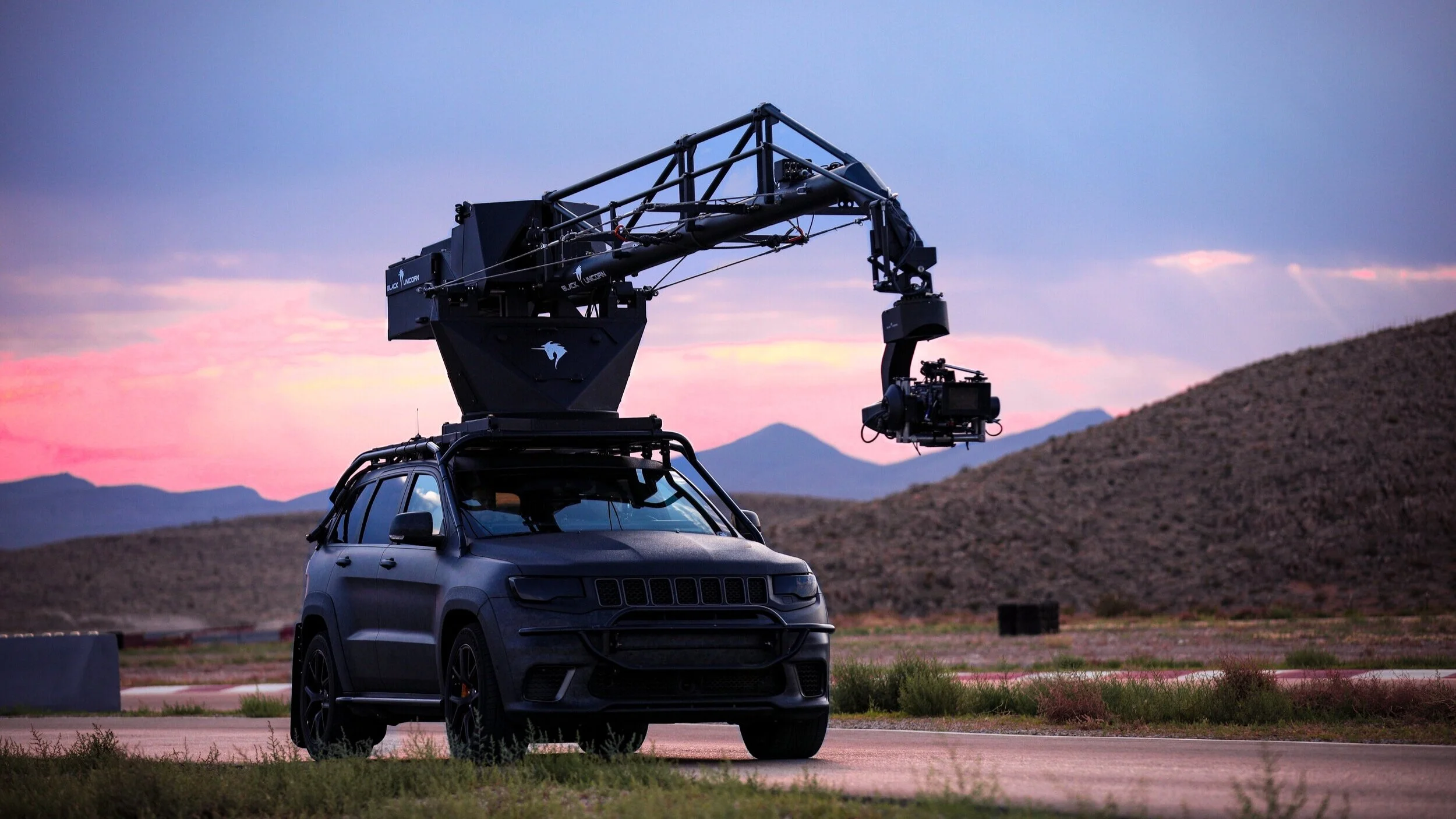

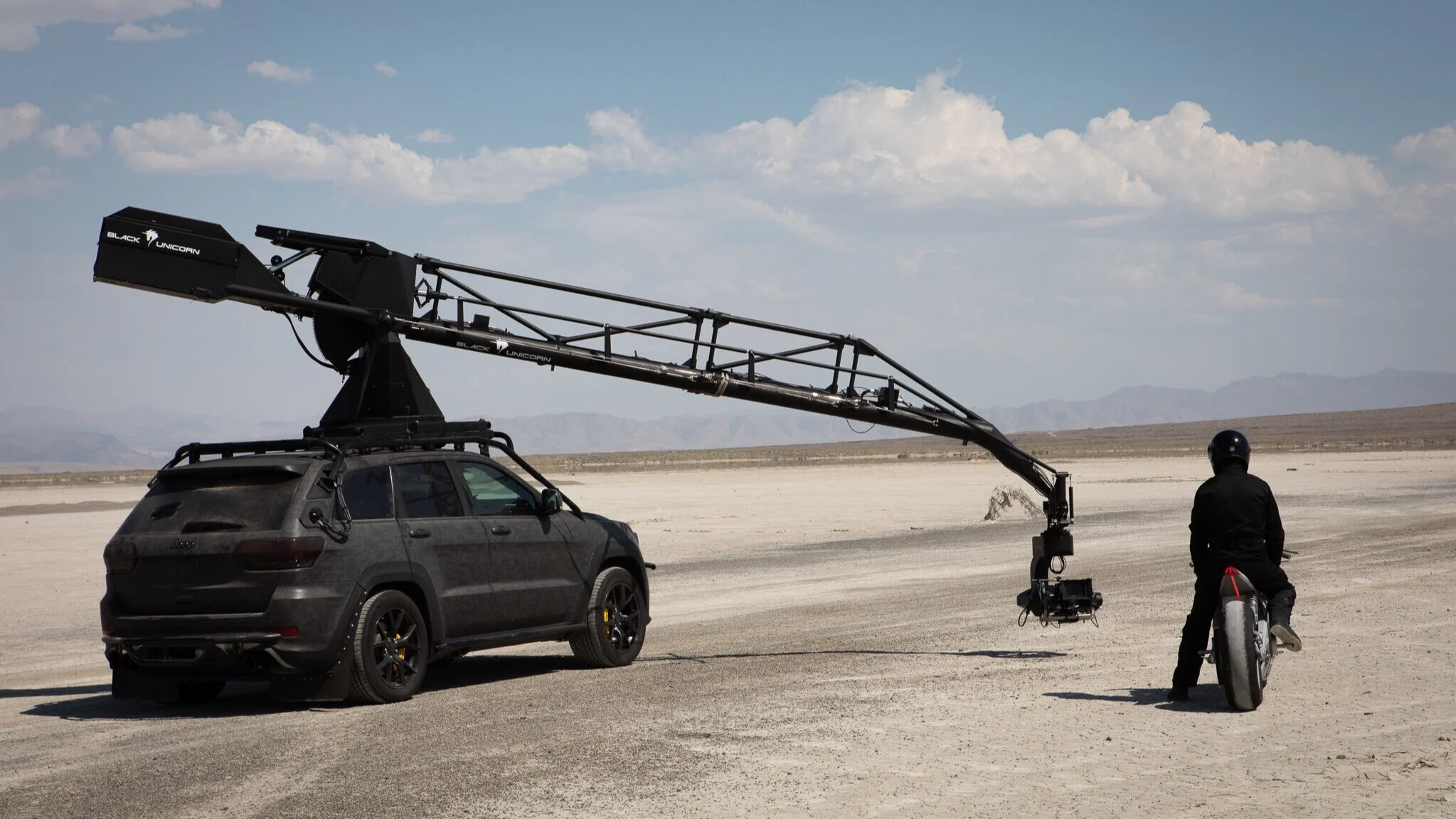

The Black Unicorn Crane (BU) is the perfect companion for our Black Unicorn Head when it comes to tracking shots off of a camera car, train or boat — offering industry-leading on- and off-road stabilization at 180 kmh / 112 mph and 90 kmh / 53 mph.
While driving, it absorbs carrier movements independently from the boom to push the envelope of image stabilization. Adjust the counterweight angle to get 8 m / 26 ft tall stable shots.
Batteries, doubling as core counterweight, are continuously charged via vehicle alternator. System also powers the head, camera(s) and distributes video. 120 kg / 265 lbs load capacity is good even for 3D rigs. Add/remove boom sections in one hour.
CRANE SPECIFICATIONS
・Payload Capacity - 120 kg / 265 lbs
・Stabilization (gyro/other sensors) - Yaw & Pitch / Pan & Tilt
・Boom/Arm Length (sectional) - 3,15 to 8 m / 10 to 26 ft
・Yaw/Pan speed - 360º in 3.12/4.5 seconds (116º-80º/s)
・Yaw/Pan range - 2x full rotations
・Pitch/Tilt Special limits -62º/62º w/ angled counterweight
・Water & Dust Resistance - IP65
・Temperature Range - -30ºC to +50ºC / -22ºF to 122ºF
・Carrier Speed - 180mph/ 112 mph on-road; 90 kmh/ 56 mph off-road;
・Voltage - 60 VDC
・Speed limits and Damping controls - integrated into control desk
・Weight - 275 to 790 kg / 606 to 1740 lbs (full configuration)
